Item # HT.151.01567

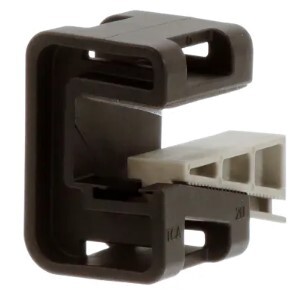

Wedge Clip, 0.31 - 0.51" Panel Thickness, PA66HSGF30, Black/Gray, 200/bag
$4.50 / EA
- Minimum Order Qty: 200
- Must Order in Multiples of: 200
- Pkg Qty: 200
- Case Qty: 600
- Bulk Qty: 14,400
- Log in to see if custom discounts apply
Item # HT.151.01567
Wedge Clip, 0.31 - 0.51" Panel Thickness, PA66HSGF30, Black/Gray, 200/bag
- UM: EA
The Wedge Clip, paired with any HellermannTyton heavy duty Cable Tie, routes cables along a frame or rail in vertical or horizontal applications. A robust design and durable materials make it ideal for extreme-duty applications. The integrated wedge mechanism slides along a stepped grade until snug against the mounting surface. Inside the clip is a 3M™ VHB™ (Very High Bond) adhesive pad, which actually builds strength over time. This holds the clip to the work surface instantly, enabling installers to place it into position without worrying about it falling off prior to fastening. The combination of adhesive and the clip’s vice-like compression result in incredible extraction force without the need to drill holes. The Wedge Clip is offered in three sizes
- Product Type: BCCLGA
- Country of Origin: Mexico
- Customs Number (Schedule B): 3926909988
- Length: 1.21"; 30.8 mm
- Height: 1.68"; 42.7 mm
- Width: 1.13"; 28.6 mm
- Material: Polyamide 6.6, glass fiber reinforced (PA66GF30);Polyamide 6.6, glass-fibre reinforced (PA66GF35)
- Color: Black (BK);Gray (GY)
- Operating Temperature: -40°F to +284°F (-40°C to +140°C)
- Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
- Use Conditions: For Indoor and Outdoor Use
- Adhesive: Acrylic foam
- Cable Tie Width Max.: 0.59"; 15.0 mm
- Fixation Method: Edge Clip
- Height H2: 0.49"; 12.50 mm
- Length L2: 1.06"; 27.0 mm
- Panel Thickness: 0.32 - 0.51"; 8.0 - 13.0 mm
- Panel Thickness Max.: 0.51"; 13.0 mm
- Panel Thickness Min.: 0.32"; 8.0 mm
Standards and Certifications
- Flammability: UL 94 HB
- Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment. Peel and stick 3M™ VHB™ adhesive inside clip increases grip and enables one-hand installation. Heat-stabilized, glass-filled PA66 assembly delivers remarkable extraction force without drilling. Three sizes cover a wide range of mounting thicknesses, reducing part inventory. 4-way, wide slot accommodates our heavy-duty and Wide-Strap Series Cable Ties
Certifications
- RoHS Compliant
- UV Resistant
Specifications
| 0.31 | |
| Steel | |
| Plain | |
| Plain |
