Item # HT.T50RTM250HSM4

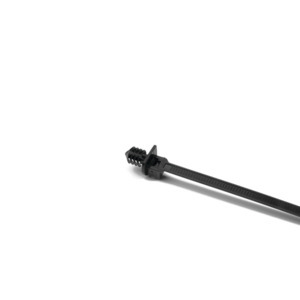

1-Pc Cable Tie/Fir Tree Mount, 8"L, 0.25 - 0.28" Mounting Hole, 50lb, PA66HS, Black, 1000/pkg
Click image to enlarge
Item # HT.T50RTM250HSM4
1-Pc Cable Tie/Fir Tree Mount, 8"L, 0.25 - 0.28" Mounting Hole, 50lb, PA66HS, Black, 1000/pkg
- UM: EA
Fir tree mounts with cable ties provide a secure grip in mounting holes and protect against dirt and other impurities. The mount provides low insertion and high extraction force, and slides along the cable tie for the proper orientation. This is sold as an assembly with the cable tie.
- Flammability: UL 94 V-2
- Country of Origin: MX
- GTIN: 4031026421384
- Material: Polyamide 6.6 heat stabilized (PA66HS)
- Operating Temperature: -40°F to +257°F (-40°C to +125°C)
- Color: Black (BK)
- Length (Imperial): 8.0 "
- Bundle Diameter Max. (Imperial): 2.0 "
- Bundle Diameter Max. (Metric): 50.0 mm
- Bundle Diameter Min. (Imperial): 0.06 "
- Bundle Diameter Min. (Metric): 1.5 mm
- Panel Thickness (Imperial): 0.05 " – 0.28 "
- Panel Thickness (Metric): 1.32 – 7.0 mm
- Panel Thickness Max. (Imperial): 0.28 "
- Panel Thickness Max. (Metric): 7.00 mm
- Panel Thickness Min. (Imperial): 0.05 "
- Panel Thickness Min. (Metric): 1.32 mm
- Width W (Imperial): 0.18 "
- Width W (Metric): 4.6 mm
- Tensile Strength Min. (Imperial): 50.0 lbs
- Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation
- Initial fir tree serves as a locating feature for assistance in blind assembly applications
- Disc feature provides anti-rattle protection in high vibration applications
