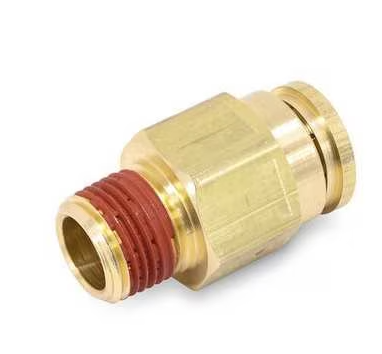

VS68PTC-4-2, MALE CONNECTOR

• Country of Origin: United States
• Maximum Operating Pressure: 250 psi | 17 bar
• Minimum Operating Temperature: -40 °C | -40 °F | -40 °F | -40 °C
• Collet Material: Brass
• Connection Type: NPTF
• Dimensional Weight: 0.27594424460431655 lb
• Tube Material: Stainless Steel | J844 Type A & B Nylon Tubing
• Maximum Operating Temperature: 93.3 °C | 93 °C | 200 °F | 200 °F
• Division: Fluid System Connectors Division
• Body Material: Brass | Composite
• Specifications Met: DOT FMVSS 571.106, SAE J1131, SAE J2494-3
• O-Ring Material: Buna N
• Application: Air Brakes
• Configuration: Tube to Pipe
• Connection 2 Size: 1/8"
• Connection 1 Size: 1/4"
• Product Style: Connector
• Thread Sealant Material: Vibra-Seal
• Connection 1 Type: Push-to-Connect
• Connection 2 Type: Male NPT

• Being the world's leader in leak free technologies Parker's PTC fitting is offered as both a composite and brass push-to-connect air brake fitting that meets SAE and D.O.T. specifications. Engineered to meet the demands of all truck/trailer, mobile and rail systems worldwide Parker’s PTC fittings reduce assembly time versus compression style fittings by 90%. The composite body is strong, lightweight and impact resistance, while the brass ptc fitting utilizes the same collet and o-ring but features a brass body. The innovative collet design ensures positive grip on the tubing and the rigid stainless steel tube support stays in place for ease of proper assembly. Use with the following Parker Parflex Division tubing.
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing Markets:
• Heavy duty truck
• Trailer
• Mobile
• Rail
